Software Updates

Synopsys OptoCompiler and Synopsys OptSim 2023.03-SP1

Synopsys OptoCompiler and Synopsys OptSim 2023.03-SP1

Enhancements and Fixes

  • OptoCompiler Python module:
    • Added support for partial curves, creating only a portion of the center path
    • Added support for offset curves, enabling new shapes to follow the center path of a given curve at a distance
    • Added accessor methods for parameters of built-in width functors
    • Added ability to query path lengths of (parts of) curves
    • Added ‘Ref’ port to CenterPath element
    • Shapes are now not calculated until the ‘draw’ function is called.
  • Fixed a few crashes
  • Fixed bug in back-annotation when using arbitrary port names


Synopsys OptSim

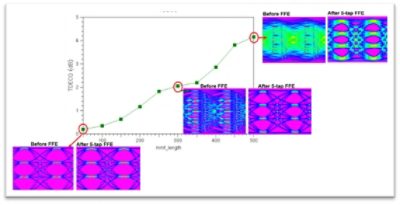

  • New transmitter dispersion eye-closure quaternary (TDECQ) analysis block. In data center optics, 4-level Pulse Amplitude Modulation (PAM-4) signaling is gradually overtaking Non-Return to Zero (NRZ) signaling. Prior versions of OptSim supported modeling of PAM4 systems. IEEE 802.3bs describes an important performance measure for PAM4 links, namely, Transmitter Dispersion Eye Closure Quaternary (TDECQ). The new model enables measurement of TDECQ in high-speed PAM4 links.
  • Usability and documentation improvements and updates

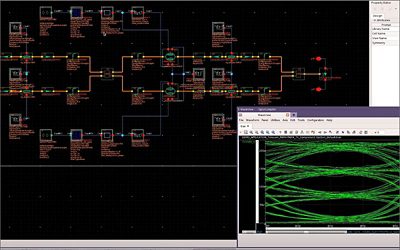

    • Simulation speed improvements for E-O co-simulation
    • Documentation update: Updates to the models’ reference manual

RSoft Photonic Device Tools 2023.03-1 Release

RSoft Photonic Device Tools 2023.03-1 includes the following updates.

MetaOptic Designer:

  • Added a new performance metric to measure MTF; the metric is enabled by defining the symbol save_mtf=1
  • Improved memory handling of GDS generation for large metalenses
  • Provided a direct way to include materials from the RSoft CAD Environment without the need to edit text files or have an RSoft CAD Environment license

Support for high-performance computing:

  • Improved support for job schedulers
  • Updated to FullWAVE FDTD cluster licensing to minimize overhead

Synopsys Sentaurus TCAD Interface:

  • Added a new CMOS image sensor application note and project to SolvNetPlus that showcases the interface between Sentaurus TCAD, DiffractMOD RCWA, and FullWAVE FDTD

Foundry Spotlight

We would like to highlight Advanced Micro Foundry (AMF), a specialty commercial foundry dedicated to silicon photonics, located in Singapore.

AMF offers reliable and predictable foundry services, with a sustained focus on safety, quality, delivery and its customers.

In addition to standard wafer manufacturing services, AMF also offers 6 Multiple Project Wafers (MPW) shuttles per year, active and passive, in Silicon-on-Insulator (SOI) and in Silicon Nitride-on-SOI. AMF’s proposition also includes wafer level packaging solutions to facilitate the integration of your photonic chip into a final product.

Synopsys and AMF have been working together for many years to develop PDKs for Synopsys OptoDesigner and to support mutual customers. Recently, the two companies worked closely together to expand the PDKs to include DRC and LVS decks for Synopsys IC Validator physical verification solution and to enable design implementation with Synopsys OptoCompiler. All the photonic productivity features, like the flexible single and bus waveguide connectors, seamless abutment, and photonic auto-align have been enabled. Also, metal auto-routing is now available for the various technology platforms AMF provides. With this, customers can reduce design turnaround times and improve quality of results.

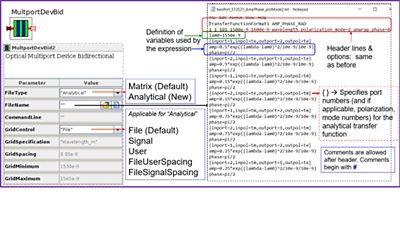

Modeling Improvements for Photonic Integrated Circuits

Modeling Improvements for Photonic Integrated Circuits | Synopsys

Synopsys offers a wide range of photonic simulation capabilities that cover device, circuit, and system level design. This article discusses modeling improvements made in late 2022 and early 2023 for circuit-level photonic simulations using the Synopsys OptSim product.

Tech Talks

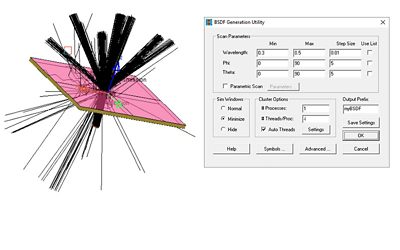

Efficient BSDF Generation Using RSoft Photonic Device Tools: Tips and Tricks Tech Talk | Synopsys

Efficient BSDF Generation Using RSoft Photonic Device Tools: Tips and Tricks

July 4, 2023; 10:00–11:00 a.m. CET (Europe)
July 11, 2023; 10:00–11:00 a.m. PDT (North America)
Online via Zoom

Access Tech Talks on Demand

SolvNetPlus Articles and Courses

SolvNetPlus | Synopsys

Synopsys SolvNetPlus provides a wide range of self-service resources that are available to eligible users 24/7. We have consolidated access to our support resources to help you use Photonic Solutions software more effectively.

Learn how to find resources on our website and SolvNetPlus

The SolvNetPlus Knowledge Base features a collection of searchable articles covering many topics about Synopsys products, including Photonic Solutions tools. Check out this month’s new articles.

Upcoming Events
