Estimating the Impact of Wafer-to-Wafer (WTW) and Run-to-Run (RTR) Foundry Process Variations on Yield

Tool Used: OptSim Circuit

In a separate OptSim Circuit application note, we demonstrated how to model a Traveling Wave Mach-Zehnder modulator (TW-MZM) using discrete PIC elements. In this application note, we replace the generic splitter and combiner model with IMEC PDK elements and study the influence of variations in fabrication processes1. The layout is shown in Figure 1.

OptSim Circuit schematic | Synopsys

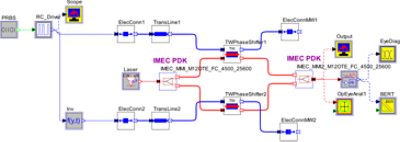

Figure 1: OptSim Circuit schematic

The layout consists of IMEC foundry process design kit (PDK) elements for the photonic components for the splitter and combiner; and transmission line elements for the RF electrodes. A back-to-back receiver is used to estimate the performance of the transmitter chip. The performance of the TW-MZM depends on the matching between the effective index of the optical waveguide and the electrical transmission line. In addition, the traveling wave nature of the modulator makes it sensitive to reflections due to impedance mismatch in the traveling wave electrode. This application note focuses on the performance impairments due to the impedance mismatches as a result of the wafer-to-wafer (WTW) and run-to-run (RTR) variations in the silicon photonic foundry processes. The impedance mismatch can be between the generator and the phase shifter electrode, or between the phase shifter electrode and the load, or both. The above layout focuses on the mismatch in impedance between the electrode and the load.

After the Monte Carlo statistical scans, Figure 2 shows the effect of the impedance between the electrode and the load on the modulator’s extinction ratio as measured from the optical eye at the modulator output.

Extinction Ratio | Synopsys
Extinction Ratio Histogram | Synopsys

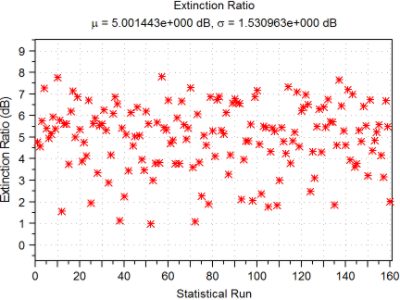

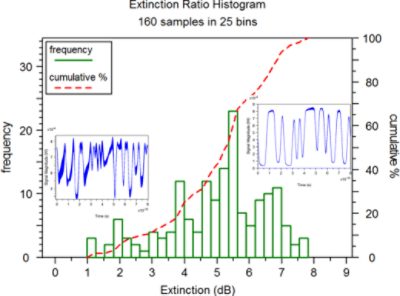

Figure 2: Distribution (top) and histogram (bottom) for the extinction ratio at the modulator output

Figure 3 shows the effect of the impedance mismatch between the electrode and the load on the bit error rate (BER) of the back-to-back received signal at the modulator.

Statistical Run | Synopsys
BER Histogram | Synopsys

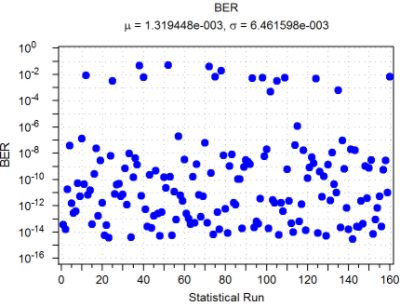

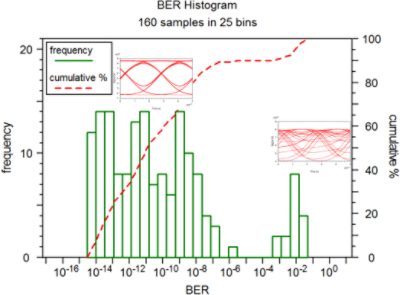

Figure 3: Distribution (top) and histogram (bottom) for the BER at back-to-back received signal

Modeling the impact of tolerances in the fabrication process not only helps photonic foundries estimate the yield, but also helps system and chip designers understand performance bounds.


1 J. Patel, E. Ghillino, C. Xu, D. Herrmann, and E. Heller, “Silicon photonic foundry processes and travelling-wave Mach-Zehnder modulators,” Novus Light Technologies Today, Nov. 2015,
