Graphene-Based Electro-Optic Nano-Modulator
Tools Used: FullWAVE, FemSIM
A leading electro-optical company in Japan needed to design a graphene-based modulator. Graphene, which has a high modulation efficiency, is a promising material choice for nanoscale modulators.
The Challenge
Graphene consists of a planar atomic layer of carbon atoms bonded in a hexagonal structure. It has unique optical constant properties that are highly dependent on its environment, including temperature, conductivity, and other properties. The simulation of an extremely thin layer requires special treatment, especially since graphene is anisotropic with different in-plane and out-of-plane properties. The RSoft™ Photonic Component Design Suite provides ideal solutions for this simulation challenge.

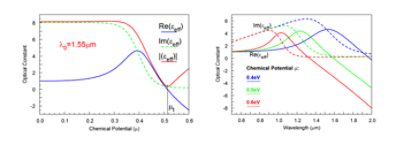

Figure 1. Graphene optical constant versus wavelength and chemical potentials computed in the RSoft tools
The Solution
Graphene is implemented as a special material in The RSoft CAD Environment™. The required material properties can be easily set, including the chemical potential, temperature, and scattering factor. The anisotropic properties are included. Multiple instances of graphene with different properties can be combined in a single simulation.
In addition, a non-uniform mesh can be used to accurately simulate a thin graphene layer in the RSoft FemSIM™, FullWAVE™, DiffractMOD™ and ModePROP™ simulation packages.
